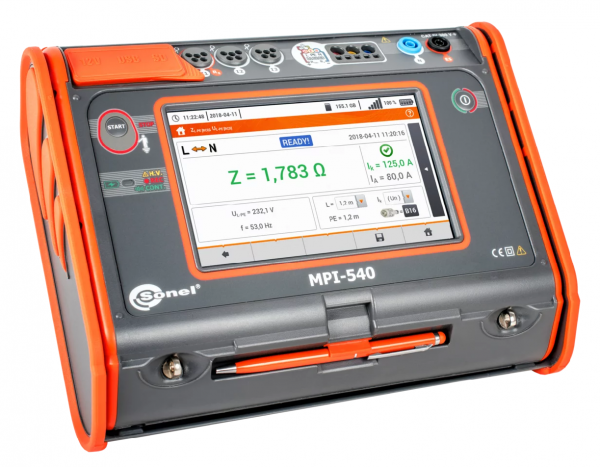

  • Multifunctional Installation Tester MPI 540

  • Multifunctional installation tester
  • Portable Appliance Testers
  • The MPI-540 multifunctional meter is intended for testing home and industrial electrical installations. The instrument can be used to carry out measurements, the results of which determine the safety status of the installation. In addition, the user is able to record the parameters of the electrical networks located at these sites. This makes it possible to control the quality of electricity, and to measure electric shock protection parameters, using a single universal device.

    Significant automation of measurements is made possible by the function of testing residual current circuit breakers in Auto mode, as well as measurement sequences pre-programmed by the manufacturer (so-called autotests), which can also be extended with own sequences. Automatic measurement of insulation resistance of 3-, 4- and 5-core cables will be carried out with the AutoISO-1000C adapter.

  • share share tweet
  • Description
  • Specifications
  • Downloads
• The largest touch screen on the market (7”) – remarkable ergonomics and ease of use.
• Removable microSD memory card – easy increase of memory capacity.
• Quick measurement of the fault loop impedance in networks secured with RCD without triggering (up to several seconds).
The MPI-540 can record 50/60 Hz power quality parameters in accordance to S class of EN 61000-4-30:
  • voltage L1, L2, L3, – average values in the range up to 500 V,
  • L1, L2, L3 currents, – average values, current measurement in the range up to 3 kA (depending on the current probes used),
  • frequency in the range of 40 Hz – 70 Hz,
  • active (P), reactive (Q) and apparent (S) power,
  • power factor (PF), cosφ, tanφ,
  • harmonics (up to 40th for voltage and current),
  • total harmonic distortion (THD) for current and voltage,
  • recording of events for current and voltage,
  • energy flow – 4 quadrants.
