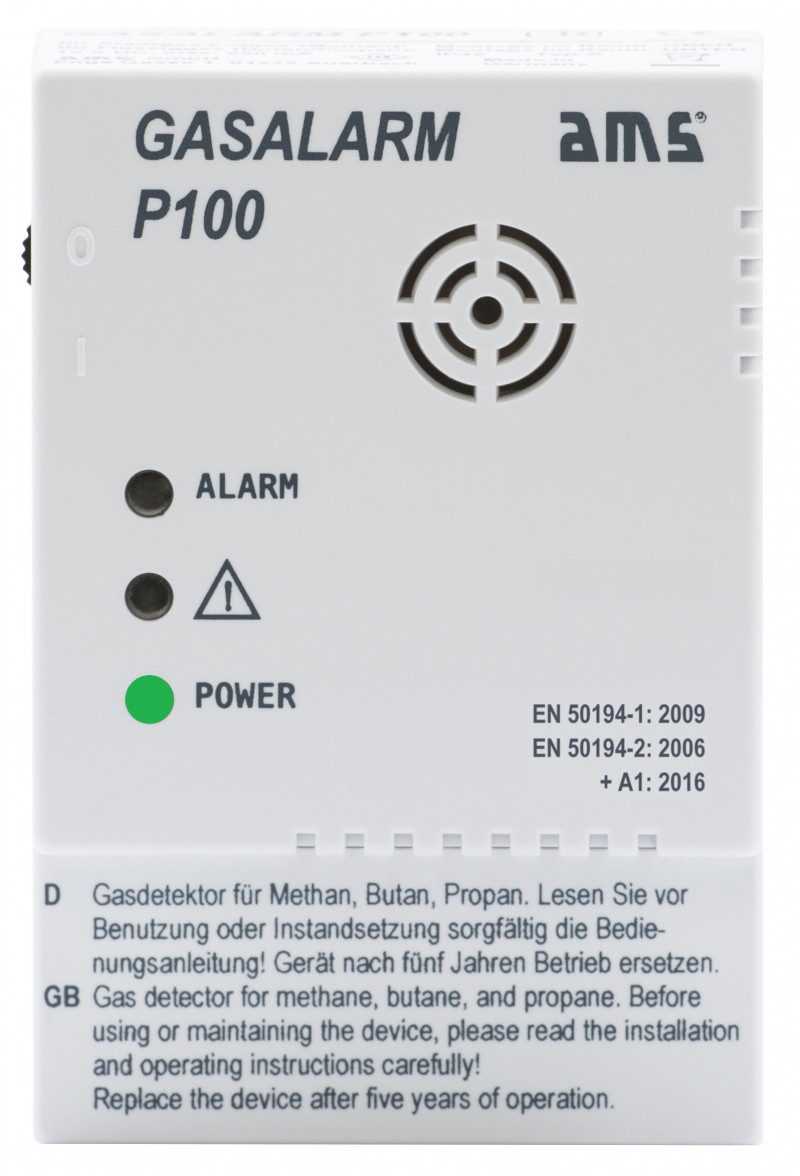

  • GASALARM P100

  • Designed in accordance with EN 50194-1:2009 and EN 50194-2:2006 + A1:2016
  • The gas alarm for more safety in homes, caravans and motor homes
  • Gas warning devices
  • The GASALARM P100 detects town gas/natural gas (methane) and liquefied petroleum gas (propane/butane) well before an explosive mixture occurs and warns with an optical and acoustic alarm.
    The optional switching output can be used to connect external devices (e.g. airing).

  • share share tweet
  • Description
  • Specifications
  • Response thresholds
  • Downloads
Performance characteristics:
  • • Designed in accordance with EN 50194-1:2009 and EN 50194-2:2006 + A1:2016
  • • For homes, motor homes and caravans
  • • With sensor for liquefied gas (propane/butane) and town gas/natural gas (methane)
  • • Warns well before an explosive gas mixture occurs
  • • Loud alarm siren and red alarm LED
  • • Green power LED and self-test function
  • • Easy installation (wall mounted)
  • • Mains power supply optionally available

Options:
  • • Switching output to connect external devices (e.g. airing)
  • • Acoustic alarm: approx. 85 dB(A) / 1 m
  • • Relay output (optional): potential-free alternating contact; 1 A / 24 V DC
  • • Automatic reset after gas concentration falls below alarm level
  • • Operating temperature: -10°C to +40°C
  • • Humidity: 95% RH max.
  • • CE-conformity: EN50270:2015/AC:2016
  • • Designed in accordance with EN 50194-1:2009 and EN 50194-2:2006 + A1:2016
  • • Dimensions: 60 x 90 x 31 mm (W x H x D)
  • • Protection class: IP 42
  • • Operating voltage: 12 V DC (-10% / +20%)
  • • Current consumption: 250 mA max.
  • • Weight: approx. 100 g
  • • Methane (town gas) 0,4000 Vol.% (approx. 9% of the lower explosion limit)
  • • Butane (liquefied gas) 0,2050 Vol.% (approx. 14,5% of the lower explosion limit)
  • • Propane (liquefied gas) 0,2400 Vol.% (approx. 14,1% of the lower explosion limit)
