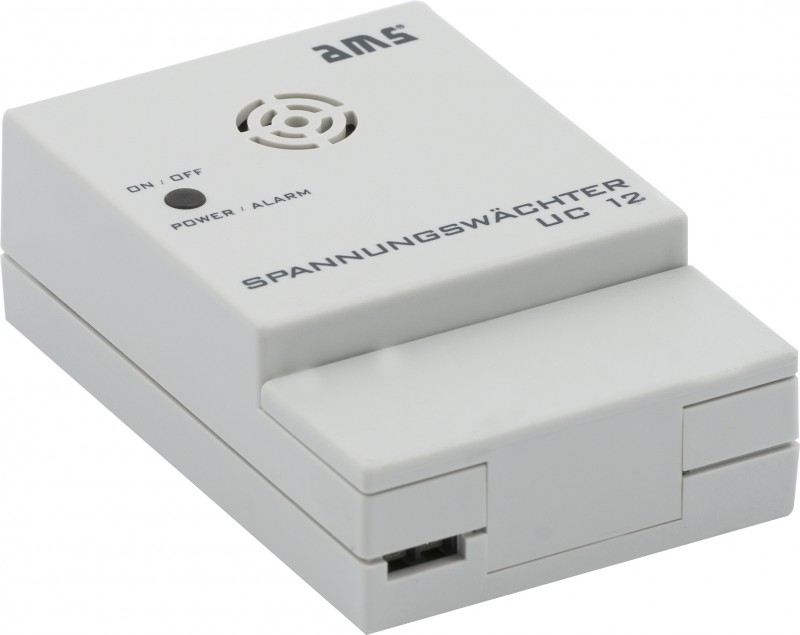

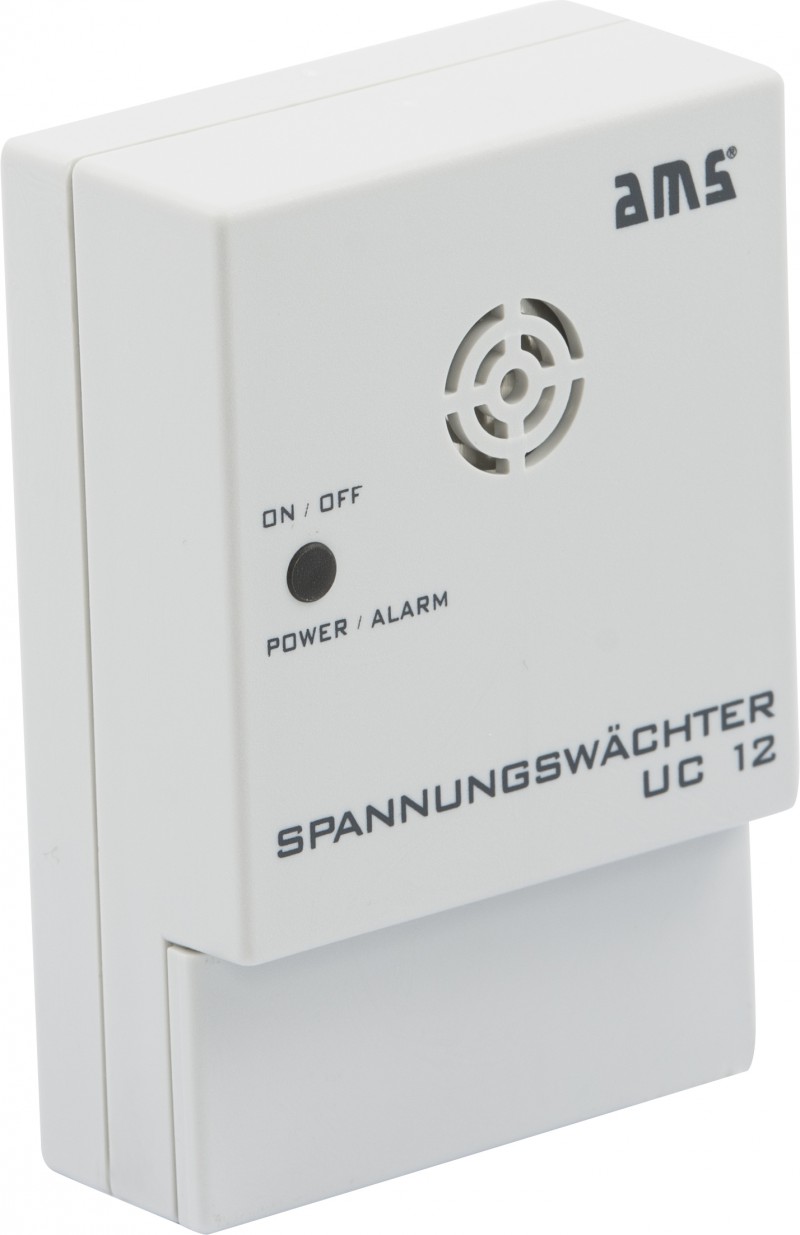

  • Voltage-control UC 12

  • Permanent supervision of the 12 V power supply
  • Accessories

  • The voltage-control is designed for the continuous supervision of a 12 Volt constant voltage source. If the voltage falls below a fixed threshold value of 10.2 Volt resp. if there is a manipulation on the board voltage, an optical and at the same time audible alarm will be triggered. An integrated 9 V compound battery has the function to maintain the optical and audible alarm for a period of 1 - 2 days.



    Suitable for the 12 V gas warning devices KOMBIALARM, KOMBIALARM compact and all other 12 V alarm devices.


  • share share tweet
  • Description
  • Specifications
  • Downloads

Performance characteristics:

  • • Permanent monitoring of the 12 V DC power supply
  • • Rigid casing
  • • Power supply: 12 V DC (-15% / +20%)
  • • Electric current: normal mode approx. 7 mA
  • • Acoustic alarm: approx. 85 dB(A) / 1 m
  • • Protection class: IP 20 DIN 40050
  • • Operating temperature: -10 °C to +40 °C
  • • Dimensions: 60 x 90 x 31 mm (W x H x D)

  • UC 12 operating manual

    Dateityp: pdf
    Dateigrösse: 6.76 MB
    Info: Currently available in German only - for questions please contact us by phone or email.
  • Datei herunterladen
