RCM Residual Current Monitoring
- Measuring residual current WITHOUT a forced shut-down

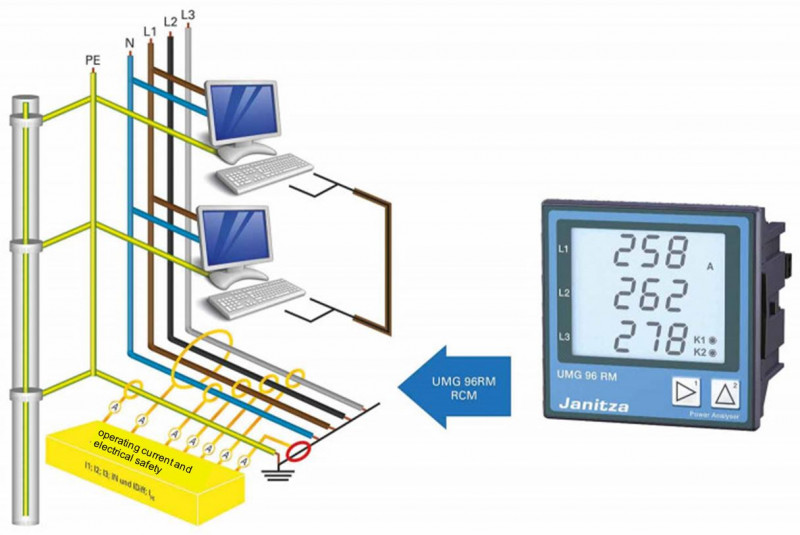

- Residual Current Monitoring (RCM)
An insulation measurement is required for the repeat testing of fixed electrical systems per DGUV V3, for which the system must be switched off. Production processes and administration processes are interrupted.

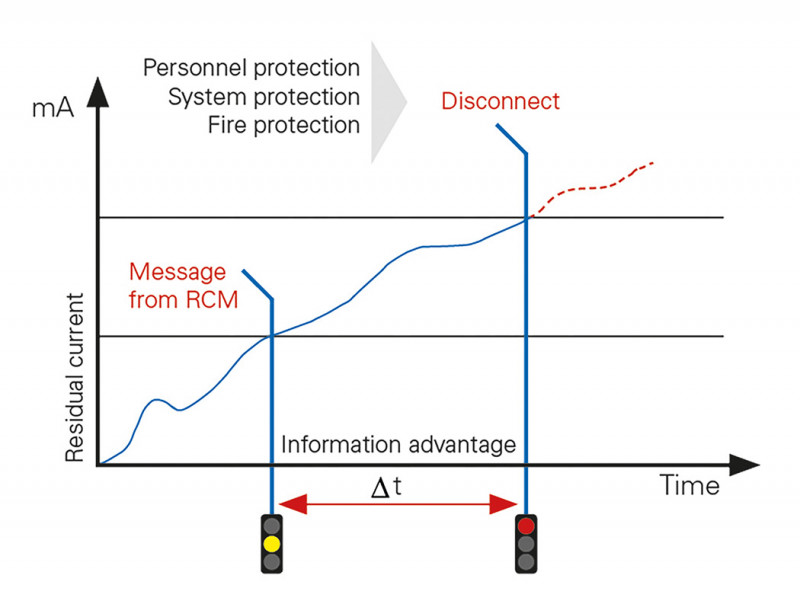

This means an increase in work and often also significant costs. In order to avoid this, the standards offer an alternative: Continuous residual current monitoring, with which it is also possible to locate faults faster. With continuous RCM monitoring, it is possible to avoid shut-downs and minimise test work. Constant checking of the system takes place, which enables the immediate detection of faults. Conventional repetition tests are unable to provide this and faults are often detected only after years have passed.
Performance characteristics:
Optional:
- • Minimised testing work concerning the DGUV V3
- • Avoiding a forced shut-down
- • Improving fire safety
- • Preventing production processes from being interrupted
- • Reducing energy consumption
- • Optimising costs of maintenance
Optional:
- • Software to read and analyse measured values
- • Energy management according to ISO 50001 (monitoring of V, A, Hz, kWh, kW, kVArh, kvar ...)
- • Monitoring of power quality (harmonics, flicker, voltage dips, transients ...)

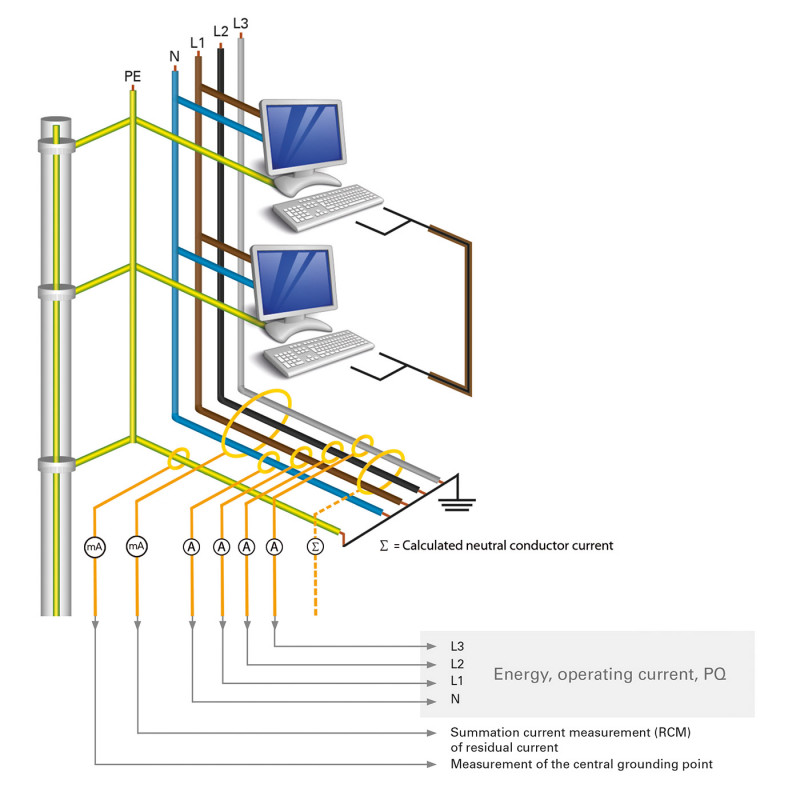

- • Measuring residual currents (RCM)
-
Flyer Residual Current Monitoring
Dateityp: pdfDateigrösse: 0.51 MB - Datei herunterladen
