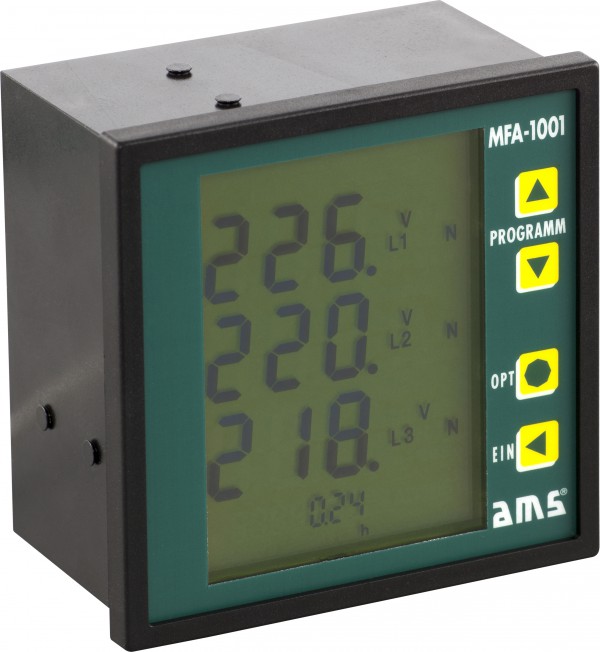

  • Multifunctional display MFA-1001

  • The economically priced multifunctional display with practical basic features. Operating time counter and active energy meter are included.
  • Multifunctional displays

  • The MFA-1001 with LC-display contains all basic functions for a four phase power grid. Optionally a switching or pulse output can be added.
    The big LC-display allows a glare-free precise reading, even from a distance. The clear user interface and easy parameterisation allows any operator to display the relevant values individually.


  • share share tweet
  • Description
  • Specifications
  • Downloads

Performance characteristics:

  • • Minimum - maximum storage for all relevant values
  • • LC-display
  • • Displaying of the averaged current and the averaged maximum current
  • • Current transformer connection 5 A or 1 A, adjustable transformer ratio
  • • All values directly displayed with unit
  • • Screw terminals allow quick and secure connection of wires
  • • No separate power supply necessary



Optional:

  • • 1 switching output
  • • Power supply 230 V AC
  • • Mounting support for DIN rails
  • • Front dimensions: 96 x 96 mm
  • • Classification rating front: IP 52, IP 65 (optional)
  • • Operating temperature: -10°C to +55°C
  • • Input voltage: 340 - 475 V phase-phase
  •                        196 - 275 V phase-neutral
  • • Input current: 0-5 A (1 A optional)
  • • Frequency: 40-65 Hz

  • MFA brochure

    Dateityp: pdf
    Dateigrösse: 1.09 MB
    Info: Currently available in German only - for questions please contact us by phone or email.
