Vertical bus bar support PSB
- For indoor switching systems
- Bus bar supports

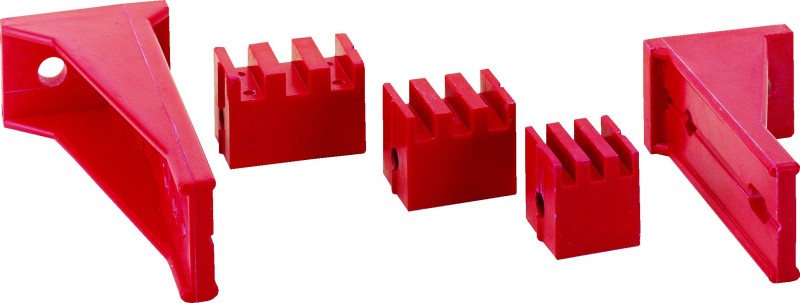

Easy to assemble vertical bus bar support in polyester material with reinforced red fibre glass, suitable for bus bars with dimensions between 40 x 60 mm and 120 x 10 mm.
Due to its construction characteristics this bus bar support is suitable for special insulating and mechanical resistance requirements.
For the mounting of a bus bar support the following parts are required:
1 or 2 lateral supports, two mounting screws and the necessary block number to clamp into place the required bus bars.
- • Support for 6, 8 or 10 mm bus bars
- • Lateral supports of 127 or 177 mm length
- • Operating voltage up to 1000 V
- • For an overview of possible variations see data sheet in Downloads
- • Operating temperature: -40 °C up to +130 °C
- • Fire resistance class: UL94-V0
- • Operating voltage: up to 1000 V
- • Dimensions: see data sheet in Downloads
