Bus bar support Z
- For mounting bus bars horizontally
- Bus bar supports
-

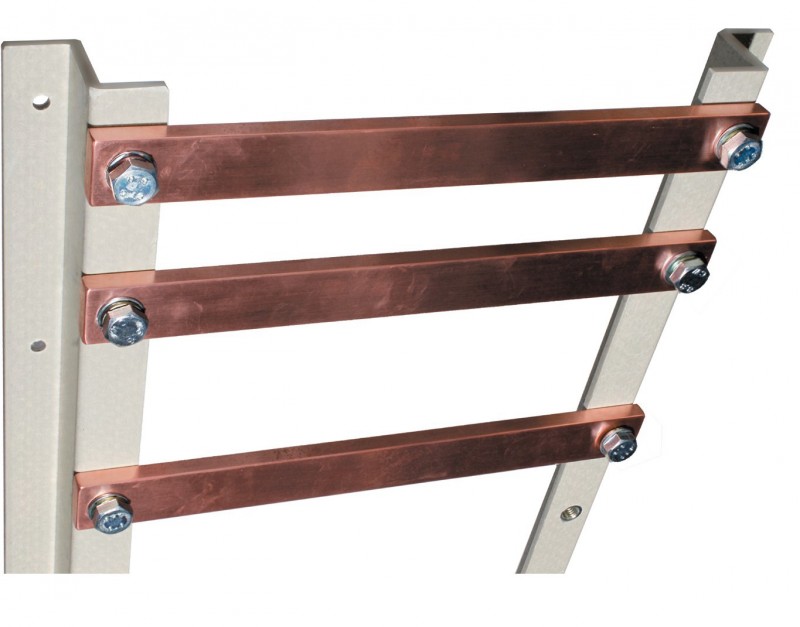

These Z-shaped supports are used for mounting 10 mm copper bus bars horizontally (three phases; one or two bars per phase).Available are the following versions:280 mm length for one bar per phase (phase clearance 100 mm)500 mm length for one bar per phase (phase clearance 185 mm)500 mm length for two bars per phase (phase clearance 185 mm)
- • Supports for 10 mm copper bus bars
- • Available lengths: 280 and 500 mm
- • For operating voltage of up to 1000 V
- • Continuous current of up to 4000 A
- • Operating temperature: -40 °C bis +130 °C
- • Operating AC voltage 1000 V
- • Continuous current up to 4000 A
- • For details of the different versions see the data sheet in Downloads
-
Bus bar support Z
Dateityp: pdfDateigrösse: 0.15 MB - Datei herunterladen
