  • Bus bar support L

  • For mounting bus bars horizontally
  • Bus bar supports
  •

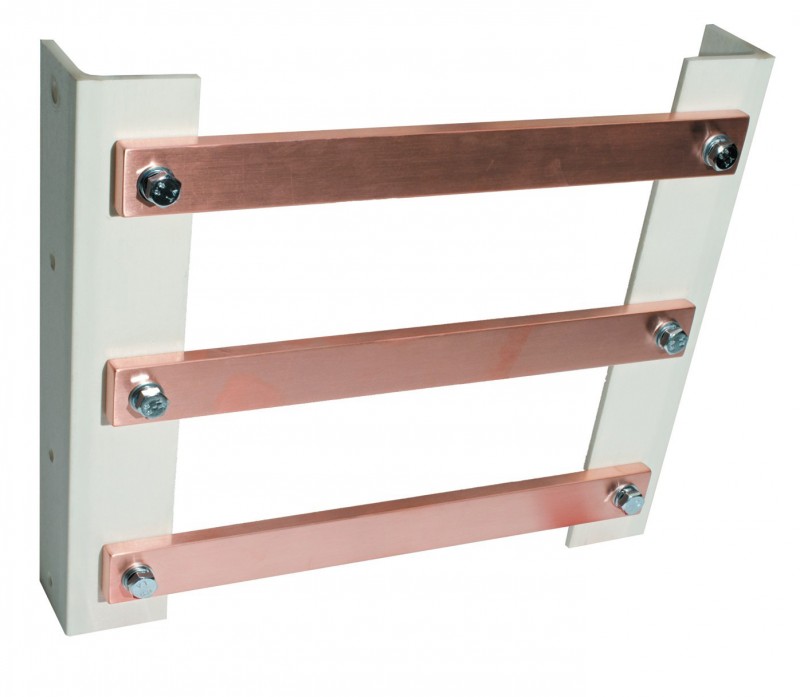

    These L-shaped supports are used for mounting 10 mm copper bus bars horizontally (three phases; one or two bars per phase).

    Available are the following versions:
    • 280 mm length for one bar per phase (phase clearance 100 mm)
    • 500 mm length for one bar per phase (phase clearance 185 mm)
    • 500 mm length for two bars per phase (phase clearance 185 mm)

  • share share tweet
  • Description
  • Specifications
  • Downloads
  • • Supports for 10 mm copper bus bars
  • • Available lenghts: 280 and 500 mm
  • • For operating voltage of up to 1000 V
  • • Continuous current of up to 4000 A
  • • Operating temperature: -40 °C bis +130 °C
  • • Operating AC voltage 1000 V
  • • Continuous current up to 4000 A
  • • For details of the different versions see the data sheet in Downloads
