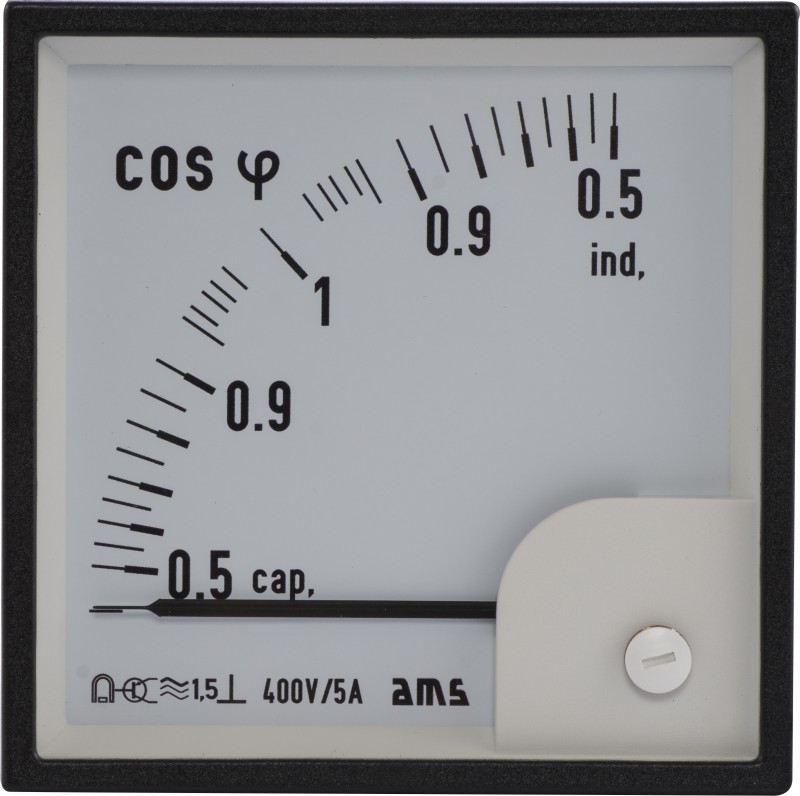

Power-factor meters
- Power meters and power-factor meters
Our power-factor meters are designed to be flush-mounted in control panels.
Choose from single-phase AC and three-phase AC balanced load meters.Special built-in electronics allow a wide range of input signals and variations.
- • Moving coil movement with power converter
- • Power factor meter with offset zero
- • Movement: moving coil with power converter, scale 90°
- • Pivot with spring-loaded jewels
- • Pointer shape: beam-type knife-edge pointer
- • Casing: Polycarbonate; steel sheet for size 144 x 144 mm
- • Front frame color: black; grey on request
- • Frequency range: 45...50...60 Hz
- • Available sizes: 72 x 72 mm, 96 x 96 mm and 144 x 144 mm
-
Datasheet power (factor) meters
Dateityp: pdfDateigrösse: 0.8 MB - Datei herunterladen
