  • StringControl

  • For monitoring photovoltaic installations
  • Photovoltaic

  •

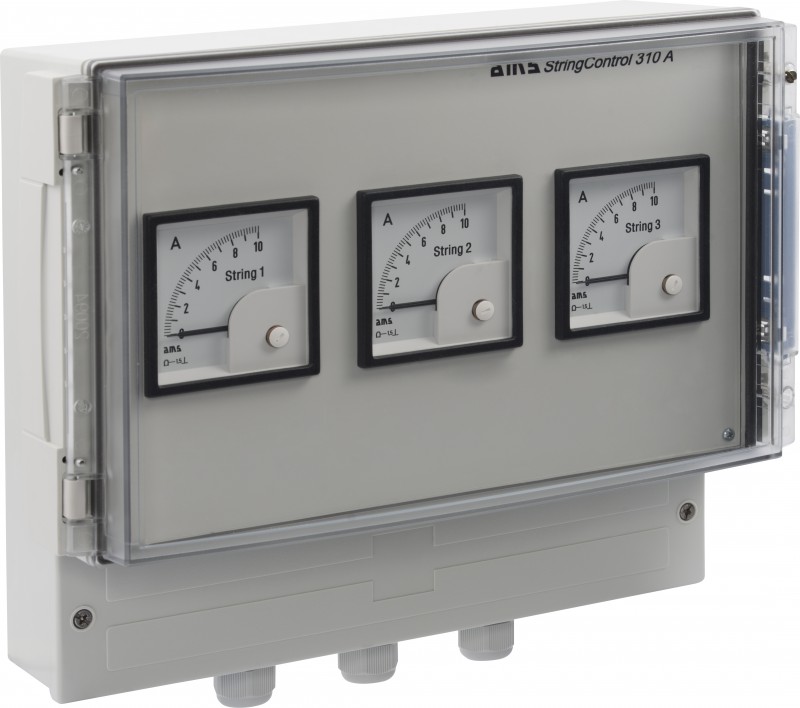

    StringControl is designed to monitor the strings of small to medium photovoltaic installations.

    Each of the integrated analogue meters continually measures the current of the solar panels which are connected to one string.

    The StringControl module can be integrated into newly planned installations as well as into existing ones.





  • share share tweet
  • Description
  • Specifications
  • Downloads
  • • Housing meets fire safety regulations
  • • Readings of all strings at a glance



Options:

Available with:

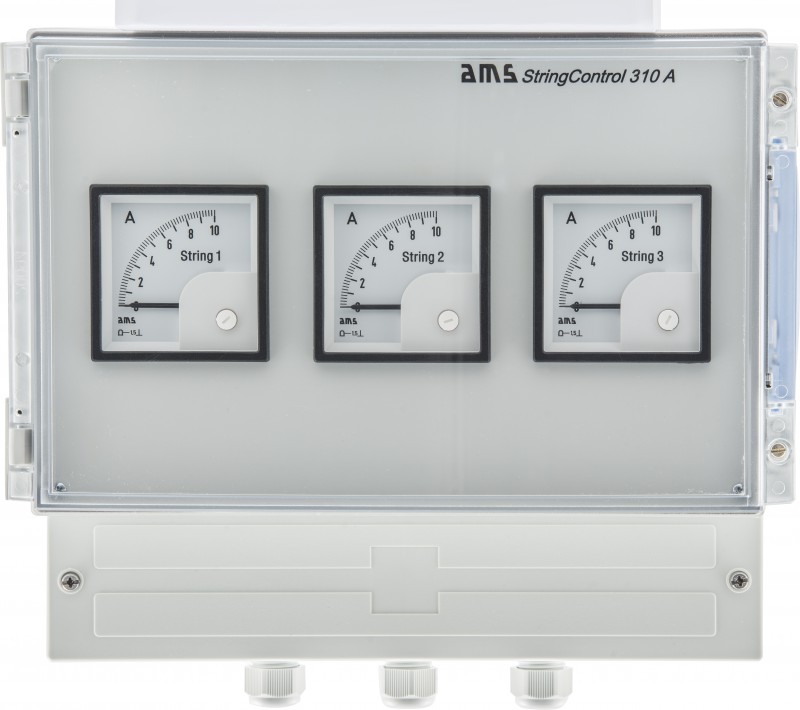

  • • 3 Ammeters for up to 3 strings
  • • 4 Ammeters for up to 4 strings
  • • 6 Ammeters for up to 6 strings
  • • Size of housing: 320 x 260 x 129 mm (L x W x H)
  • • Classification rating (EN 60529): casing: IP 65; connection terminals: IP 52
  • • Material: Polycarbonate
  • • Impact resistance: IK 08/07
  • • UV resistance: UL 508
  • • Fire regulations classification: UL 746C 5V
  • • Operating temperature: -20°C to +40°C
  • • Maximum input current per string: 10 A DC
  • • Maximum voltage: 900 V DC

  • StringControl user manual

    Dateityp: pdf
    Dateigrösse: 0.22 MB
    Info: Currently available in German only - for questions please contact us by phone or email.
  • Datei herunterladen
