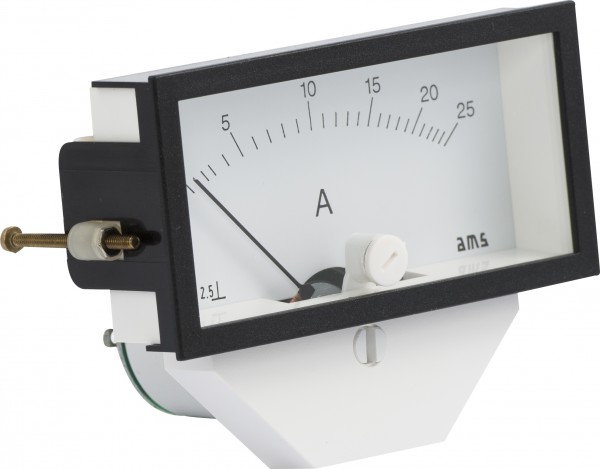

Moving iron "Interserie"
- Moving iron meters
Moving iron meters are mainly used in plant engineering to measure AC current or voltage. These meters indicate true RMS values and are substantially independent of system waveform within a frequency range of 15-100 Hz.
- • This design utilizes a pivot, spring and jewel movement and a magnetic shielding
- • Available in 4 different sizes and up to 5 mounting variations
- • Interchangeable scale system for simple change as standard
- • Pointer deflection 90 degrees
- • Accuracy class 1.5 or 2.5
- • Meter movement: moving iron with silicon oil damping and magnetic shielding
- • Pivot with spring-loaded jewel
- • Pointer shape: tube pointer
- • Accuracy class 1.5 or 2.5
- • Front frame color: dark-grey (similar to RAL 7011), black
- • Input ratings: 100 mA to 25 A and 10 V to 500 V directly connected
Optional:
- • Front frame color grey
-
Datasheet moving iron "Interserie"
Dateityp: pdfDateigrösse: 0.8 MB - Datei herunterladen
-
General information analogue meters
Dateityp: pdfDateigrösse: 0.09 MB - Datei herunterladen
