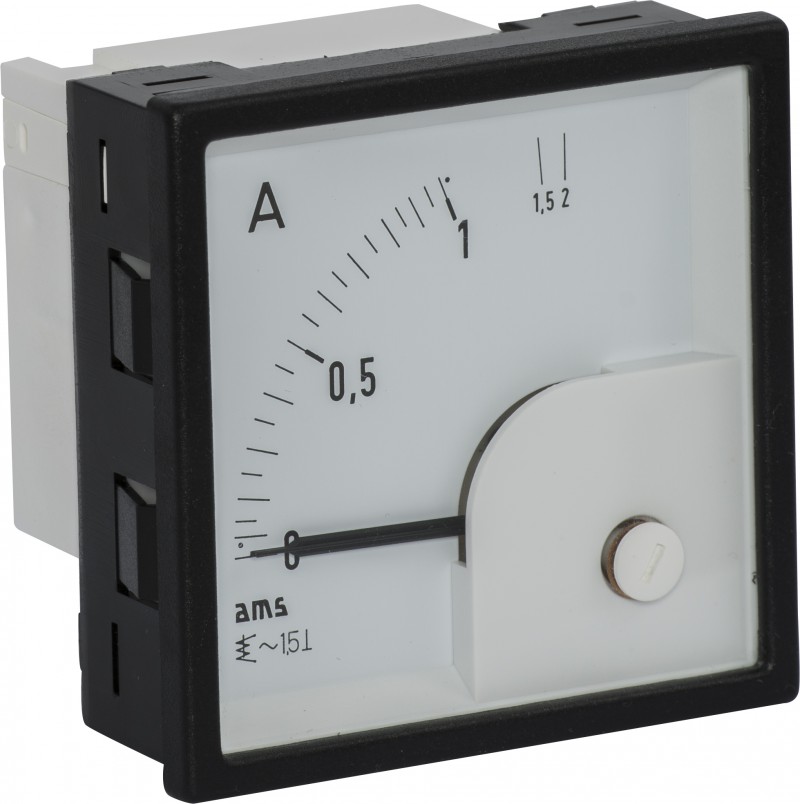

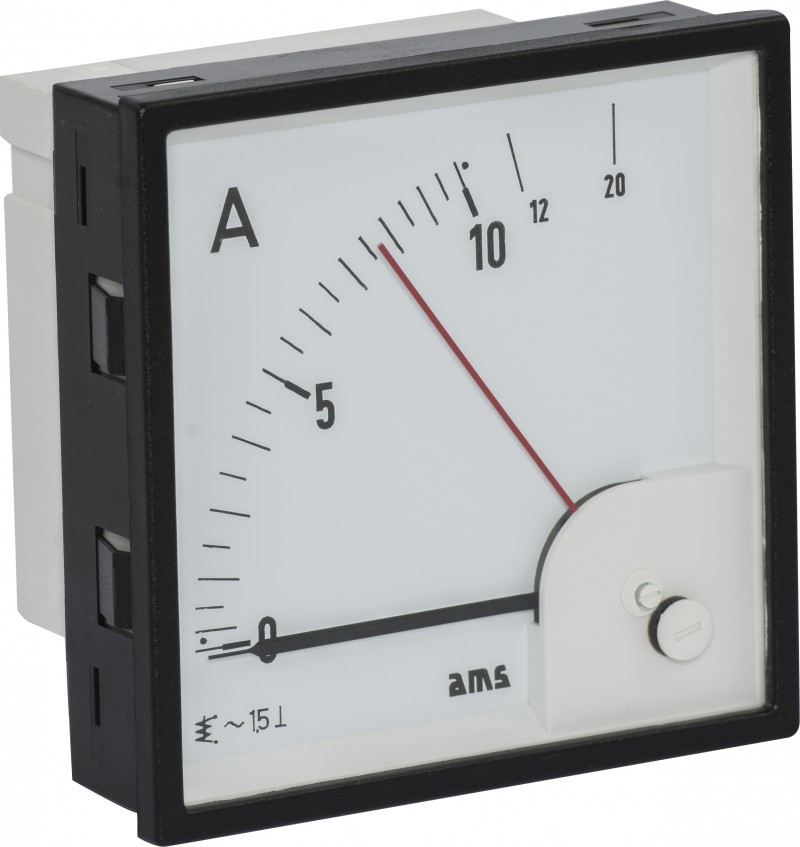

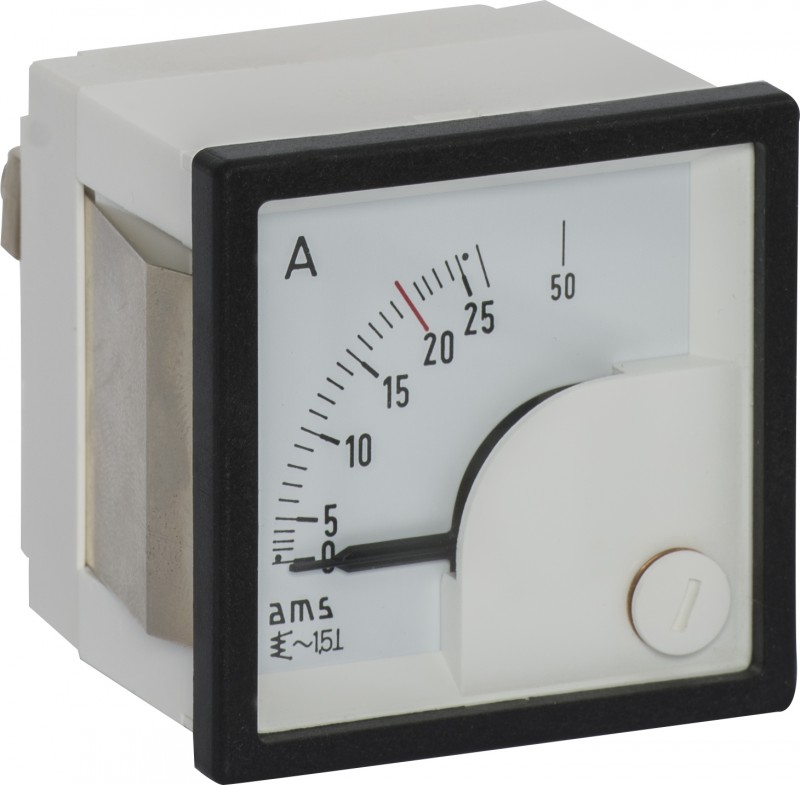

  • Moving iron “Ratioserie”

  • Moving iron meters

  • Moving iron meters are mainly used in plant engineering to measure AC current or voltage. These meters indicate true RMS values and are substantially independent of system waveform within a frequency range of 15-100 Hz.



    Several configurations and sizes available


  • share share tweet
  • Description
  • Specifications
  • Downloads
  • • “Ratioserie” in plastic casing with interchangeable scale system for simple change as standard
  • • Magnetic shielding
  • • Snap-in fixing



Optional:

  • • “Steel-sheet series”: steel-sheet casing, coated aluminium front frame (scale not changeable) in sizes 72 x 72, 96 x 96 and 144 x 144 mm available
  • • Moving iron movement with silicon oil damping and magnetic shielding
  • • Pivot with spring-loaded jewel
  • • Pointer shape: beam-type knife-edge pointer
  • • Polycarbonate casing, self-extinguishing and drip-proof
  • • Front frame color: black; grey on request
  • • Input ratings: 100 mA to 100 A and 10 V to 600 V directly connected
