Bimetal meters
- Moving iron meters

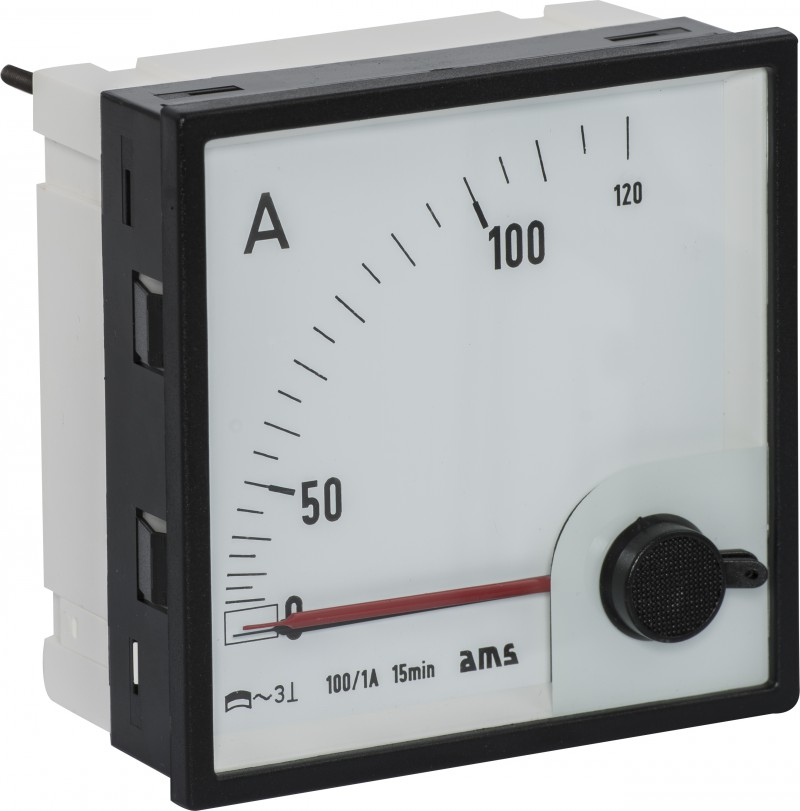

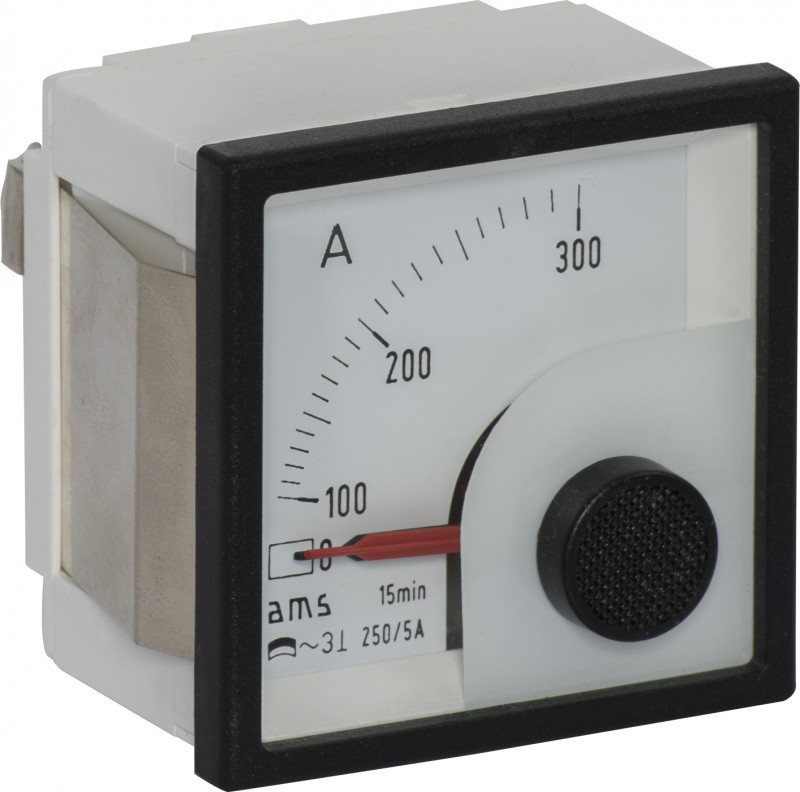

Meters with a bimetal movement are used for monitoring electrical load ratios.
Because of its thermal inertia the directly heated bimetal element indicates mean RMS current over 8 or 15 minutes, and a red slave pointer shows the highest value reached. The button to reset the slave pointer can be wire sealed.
- • Case with snap-in fixing
- • Interchangeable scale system for simple change as standard
- • Wire sealable reset button
- • Accuracy class 3
- • Pointers: black beam-type knife-edge pointer and red slave pointer
- • Reset button of the slave pointer is wire sealable
- • Polycarbonate casing, self-extinguishing and drip-proof
- • Front frame color: black; grey on request
- • Time lag: standard 15 minutes; 8 minutes available on request
- • Power consumption (5 A CT, 15 minutes): 2.8 VA
- • Overload: 1.2 fold permanently, 10 fold for 1 second
-
Data sheet bimetal / frequency meter
Dateityp: pdfDateigrösse: 0.56 MB - Datei herunterladen
-
General information analogue meters
Dateityp: pdfDateigrösse: 0.09 MB - Datei herunterladen
