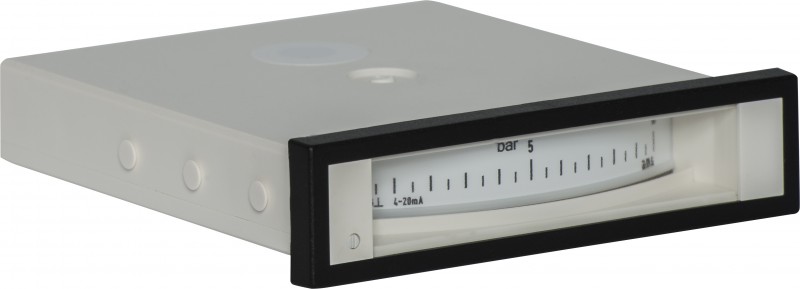

Slim-line meters
- Edgewise and slim-line meters
Our slim-line panel meters are designed to be accurate and dependable where space is limited.
Slim-line meters in plastic housings can be integrated in all standard grid panel systems.
They are available in three sizes.
- • Slim-line meters in plastic housing
- • Available for mounting vertically or horizontally
- • With built-in rectifier for AC input
- • Available sizes: 48 x 24, 72 x 24 and 96 x 24 mm
- • Input ratings: 50 µA to 10 A, 100 mV to 500 V as well as 4-20 mA
- • Movement: core-magnet moving coil, immune to magnetic fields
• Pivot with spring-loaded jewel
• Pointer: knife-edge pointer - • Choose from horizontal or vertical mounting
- • Plastic housing
- • Front frame: black; grey on request
-
Datasheet edgewise and slim-line meters
Dateityp: pdfDateigrösse: 0.42 MB - Datei herunterladen
