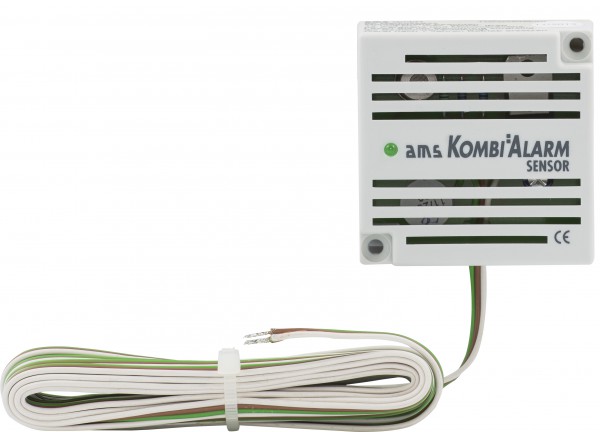

Additional sensor narcotic gas
- Additional sensor for KOMBIALARM
- The ideal addition to our KOMBIALARM
- Accessories
This additional sensor detects even low concentrations of dangerous narcotic gases, long before they can exert their harmful effect. Also liquefied petroleum gas (propane/butane) and town gas/natural gas (methane) are detected well before an explosive mixture occurs.
Key features:
1.) Permanent monitoring of propane, butane, methane and narcotic gas concentrations
2.) Simple and easy installation
Performance characteristics:
- • Green LED for operation - active
- • Compact housing for an easy mounting on the wall
- • Wires for connecting directly to the AMS-KOMBIALARM device
- • Electric current: approx. 60 mA
- • Operating temperature: -10 °C to +40 °C
- • Protection class: IP 20 DIN 40050
- • Dimensions: 49.6 x 49.6 x 24 mm (B x H x D)
- • Narcotic gas from approx. 100 ppm (depending on the kind of narcotic gas)
- • Butane (liquefied petroleum gas) approx. 0.4 % in the room air
- • Propane (liquefied petroleum gas) approx. 0.5 % in the room air
- • Methane (town gas) approx. 0.8 % in the room air
-
Zusatzsensor Gas - Bedienungsanleitung
Dateityp: pdfDateigrösse: 0.06 MB - Datei herunterladen
-
Zusatzsenor Gas - Installation and Operating Instructions
Dateityp: pdfDateigrösse: 0.13 MB - Datei herunterladen
-
Zusatzsensor Gas- Montage et Mode D´Emploi
Dateityp: pdfDateigrösse: 0.06 MB - Datei herunterladen
-
Gaswarn-Prospekt
Dateityp: pdfDateigrösse: 1.63 MB - Datei herunterladen
-
Gas detectors equipment catalogue
Dateityp: pdfDateigrösse: 1.73 MB - Datei herunterladen
