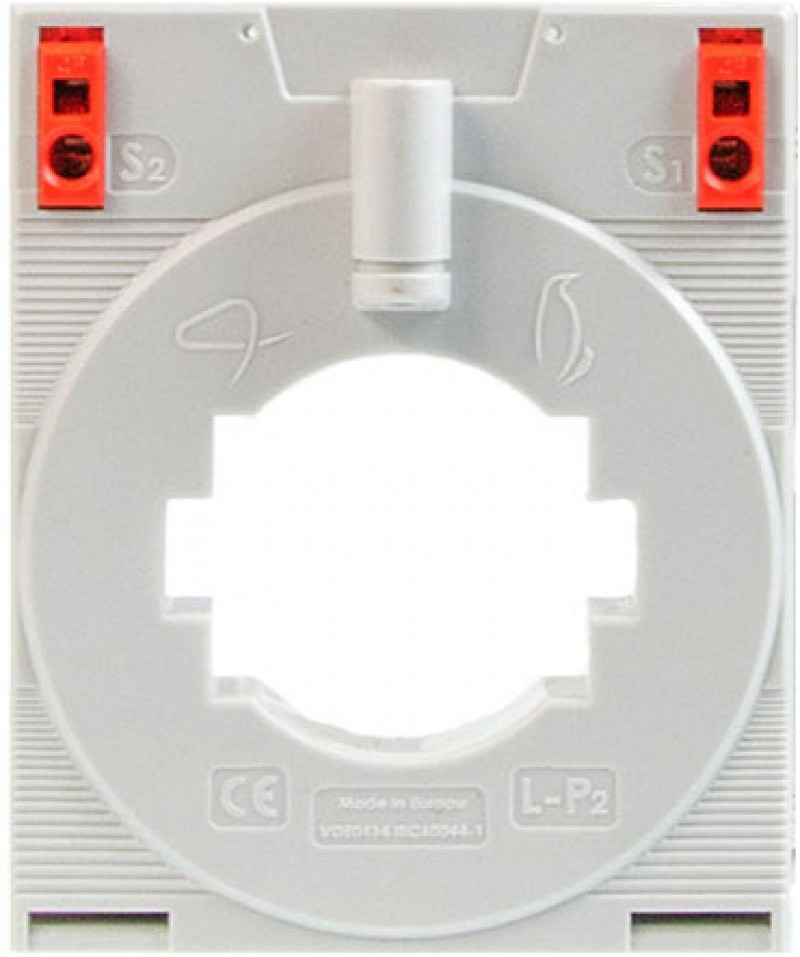

  • XCTB current transformer - measuring at up to 20 kHz

  • WORLD FIRST
  • Current transformers


  • The new XCTB’s connection is arranged with a "cage clamp ®".

    The production of the new current transformer is in accordance with the technical characteristics corresponding to DIN EN 61869-1/2, VDE 0414-9-1/2 and DIN 42600.


    Protect yourself from unexpected production losses and destruction of your equipment, robots and machines.

  • share share tweet
  • Description
  • Specifications
  • Downloads
Performance characteristics:
  • • Shockproof and shakeproof
  • • Maintenance-free, gas-tight connection
  • • High current stability and high mechanical holding forces

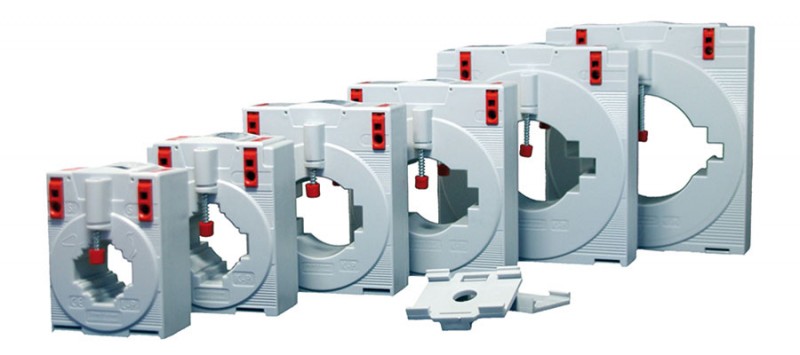

  • • Available in the nominal current ranges 50 ... 2000 A
  • • World's first current transformer with screwless connection technology "Cage Clamp®" spring-loaded terminal
  • • Dimensions: see details in Downloads
  • • Accuracy
       ε ≤ 2% | ΔØ  ≤ 2°, 0.05-10 kHz, 5VA pf1
       ε ≤ 3% | ΔØ ≤ 3°, 10-20 kHz, 5VA pf1
  • • Low-voltage current transformer for operating voltage Um of up to 1,2 kV, usage in 690 V networks possible
  • • Insulation test voltage: 6 kV, Ueff, 50 Hz, 1 minute
  • • Constant overload of up to 120% of the primary rated current possible
