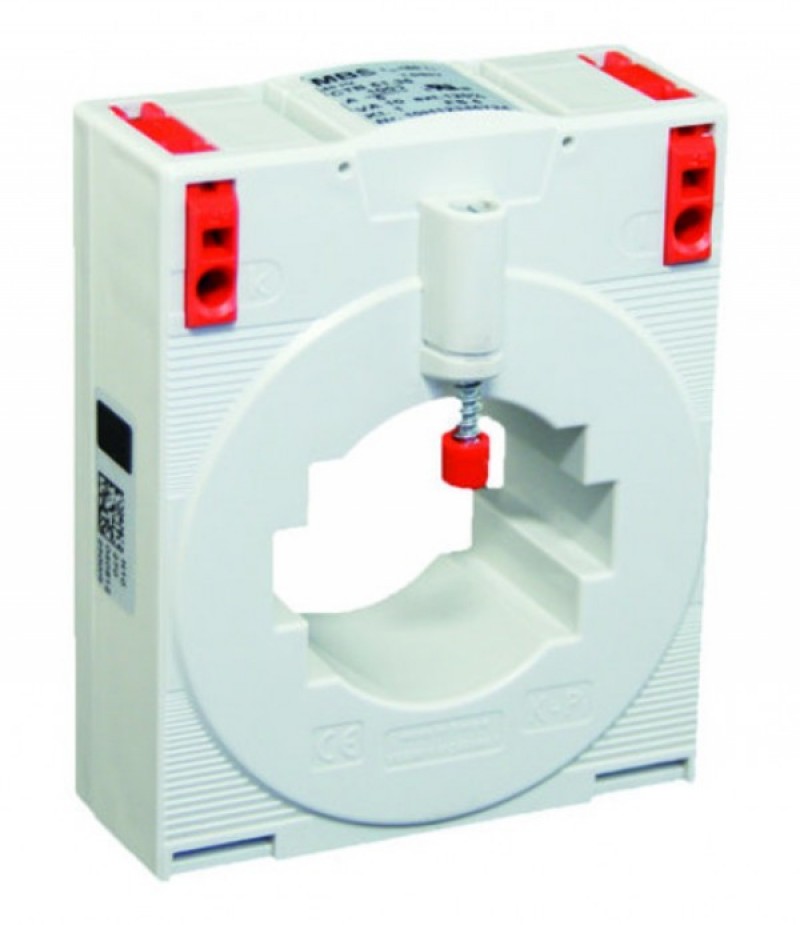

Current transformer CTB
- With UL Certification
- Current transformers
This latest current transformer type CTB incorporates not only a higher maximum operating voltage (Um < 1,2 kV) but also an increased insulation test voltage (6 kV Ueff, 1 min, 50 Hz) as well as an increased ambient temperature range (-5 °C < T < +50 °C).
The new CTB’s connection is arranged with a "cage clamp ®".
The production of the new current transformer is in accordance with the technical characteristics corresponding to IEC 61869-1/2.
UL Certification applied: Certificate Number - 20100426-E336996
Performance characteristics:
Options:
- • The delivery program covers a wide range of plug-on current transformers
- • Worldwide the first CT with screwless connection technology "cage clamp ®"
- • Accuracy class 1
- • Insulation class E
- • Self-extinguishing, flame retardant
- • Plastic casing closed by ultrasonic welding
- • UL Certification applied: Certificate Number - 20100426-E336996
Options:
- • Accuracy class 3, 1, 0.5
- • CT for tariffs in accordance with the conformity evaluation procedure
- • Dimensions: see data sheet in Downloads
- • Insulation class: E
- • Higher insulation level 1.2/6/12 kV - lightning impulse tested for 690 V systems according to IEC 61439-1 and -2!
-
Datasheet current transformer CTB
Dateityp: pdfDateigrösse: 3.94 MBInfo: Currently available in German only, for questions please contact us by phone or email. - Datei herunterladen
